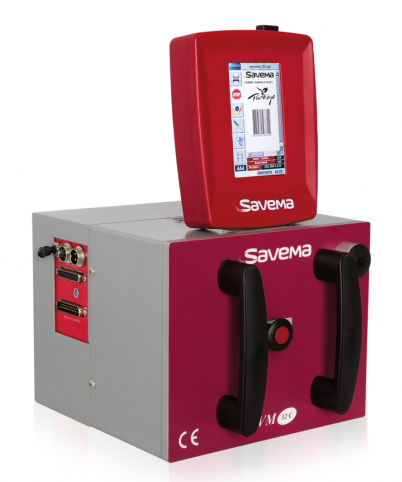

The high performance, low cost thermal transfer printers are versatile enough for printing fixed and variable text, data and graphics. It is ideal for reproducing bar codes, real time, sell-by dates, batch numbers, prices, source codes and much more.
Two component models of brackets (Intermittent & Continuous) can be easily integrated to the machines such as vertical and horizontal form-fill-seal systems, primary labellers, thermo formers and overwrapping equipments. The units are suitable for all intermittent and continuous applications within the food, pharmaceutical cosmetics and automobile spare parts industries has the capability to code all kinds of 1D barcodes and 2D datamatrix codes.
Patented long life mechanical design needs no maintanence.
32mm – 125mm for Intermittent Mode print area.
600 m. Ribbon Capacity.
300 dpi (12 dot/inch) Print Quality.
Up to 600mm per/second print speed.
Large memory for all label formats to be stored locally.
The USB can be used to transfer messages between printers and through computer too.
Technical Features32mm x 125mm Continuous mode print area.
600 meter ribbon capacity.
Resolution 300 dpi (12 dots / inch)
Print Speed up to 600 mm/sec.
4.3" touch panel color control screen.
90 °, 180 °, 270 ° rotate features of the templates.
Memory: 5000 Templates can be stored in the control screen memory.
Power Supply: 110/220V 50/60 Hz.
Programming: Real Date/Time, Text, 1D Barcode, 2D Barcode, Logo, Counter (Serial No), Shift Code, Shape, Currency.
Barcode Types: 1D Barcodes (EAN-13, EAN-8, CODE128, CODE39, ITF, 2of 5, ITF 14, CODABAR, UPC-A, UPC-E), 2D Barcodes (Datamatrix, QR Codes, PDF 417, Aztec code Semacode, Macro PDF 417).
Communication: RS-232 (PC), LAN, USB
